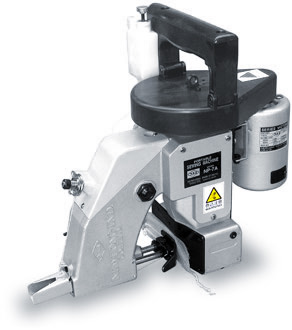

Newlong NP-7, NP-7A
Economic Portable Bag Closer Machine, Single Needle, One Thread Chain Stitch, Half- Automatic Thread Cutter, with Simple Mecanism for easy Maintenance. Recomended for Materials such as Polypropylene, Multi-Wall Paper & Jute Free Quote
|
|
|
Technical Specifications
| Max. Speed * |
1,750rpm |
1,650rpm |
1,750rpm |
1,000rpm |
| Seam |
Single thread chain stitch (Type 101) |
| Stitch Width |
8.5mm |
| Bag Material |
Paper・Jute・PP |
| Thickness |
Jute bag 8mm |
| Cutter |
Half automatic thread cutter |
| Needle |
DN×1 #25 |
| Oiling |
by hand ・ Oil pump |
| Oil |
Machine oil #10 |
| weight |
7.0kg |
| Feature |
Overseas specification |
Domestic specification |
Width type handle |
Air motor |
| Related Machines |
crepe tape cutter
（Special order） |
|
|
|
※Maximum speed depending on sewing material and operation
Brand: Newlong Industrial Co., Ltd. Made in Japan
| # |
Part Number |
Brand |
Item Description |
| 1 |
241024AS |
Newlong |
Handle Assembly |
| 2 |
241092 |
Newlong |
Drive Pulley |
| 3 |
241131 |
Newlong |
Stop Collar |
| 4 |
242011A |
Newlong |
Conn. Rod Assembly |
| 5 |
242051A |
Newlong |
Needle Bar Lever Assembly |
| 6 |
242071 |
Newlong |
Needle Bar Lever Stud |
| 7 |
242081 |
Newlong |
Adjuster Stud |
| 8 |
242101A |
Newlong |
Needle Bar Conn. Assembly |
| 9 |
242121A |
Newlong |
Needle Bar |
| 10 |
242131 |
Newlong |
Needle Clamp Nut |
| 11 |
242161 |
Newlong |
Foot Lifter Lever |
| 12 |
242172 |
Newlong |
Lifter Base |
| 13 |
242181 |
Newlong |
Presser Bar Clamp |
| 14 |
242191 |
Newlong |
Presser Spring |
| 15 |
242201 |
Newlong |
Presser Bar |
| 16 |
242222 |
Newlong |
Bush |
| 17 |
242231A |
Newlong |
Presser Foot |
| 18 |
243012 |
Newlong |
Looper Drive Cam |
|
