- Low cost, high performance machine to make produce Webbing Slings, Looms, Tie Rachet, Lifting Loops
- Affordable Free Feed Industrial Sewing Machine
- Equal to the Singer 133k / Seiko CK8, Singer 133K-18
- Also Bag mending Sewing Machine
- Connecting Handles to FIBC Big Bags
- Sewing Machine Can be integrated in a CNC system
- Heavy Duty Drop Feed mechanism
- Improved Oiling system

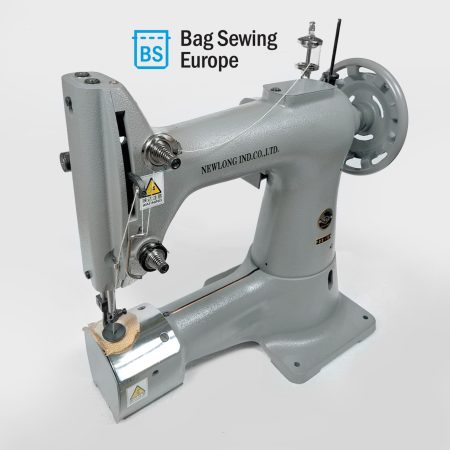

The Newlong Industrial DD-5 is excellent for making FIBC belts and Big Bag Belts and safety belts (Slings, Webbing Slings, Looms) either by hand or automated controlled by a CNC machine. The NEW LONG Industrial DD-5 is equivelant and compatible to some extend with the SEIKO SK-8, Seiko CK-8, Zeiko CK-1. The Newlong DD-5 is interchangable with the SINGER 132K, 133K model and Seiko Models. All parts of the DD-5 are the same as the parts for the Seiko SK-8, Seiko CK-1. Seiko SK-8 and Singer 132K, 133k-18 have been discontinued and taken out of production.
Technical Specifications Newlong Industrial DD5
- Model: Newlong DD5 Sewing Machine
- Max. Speed: 1,500rpm (depending on material)
- Seam: general sewing （301）Works with a bobbin
- Stitch Width: Freedom sending, Free feed, no feed
- Bag Material: Jute・ Container bag, etc.
- Thickness: not applicable
- Cutter: Not applicable
- Needle: 216X7-300 (B12001), 216X7-280 (B12002), DD x 1 x25 (B04001)

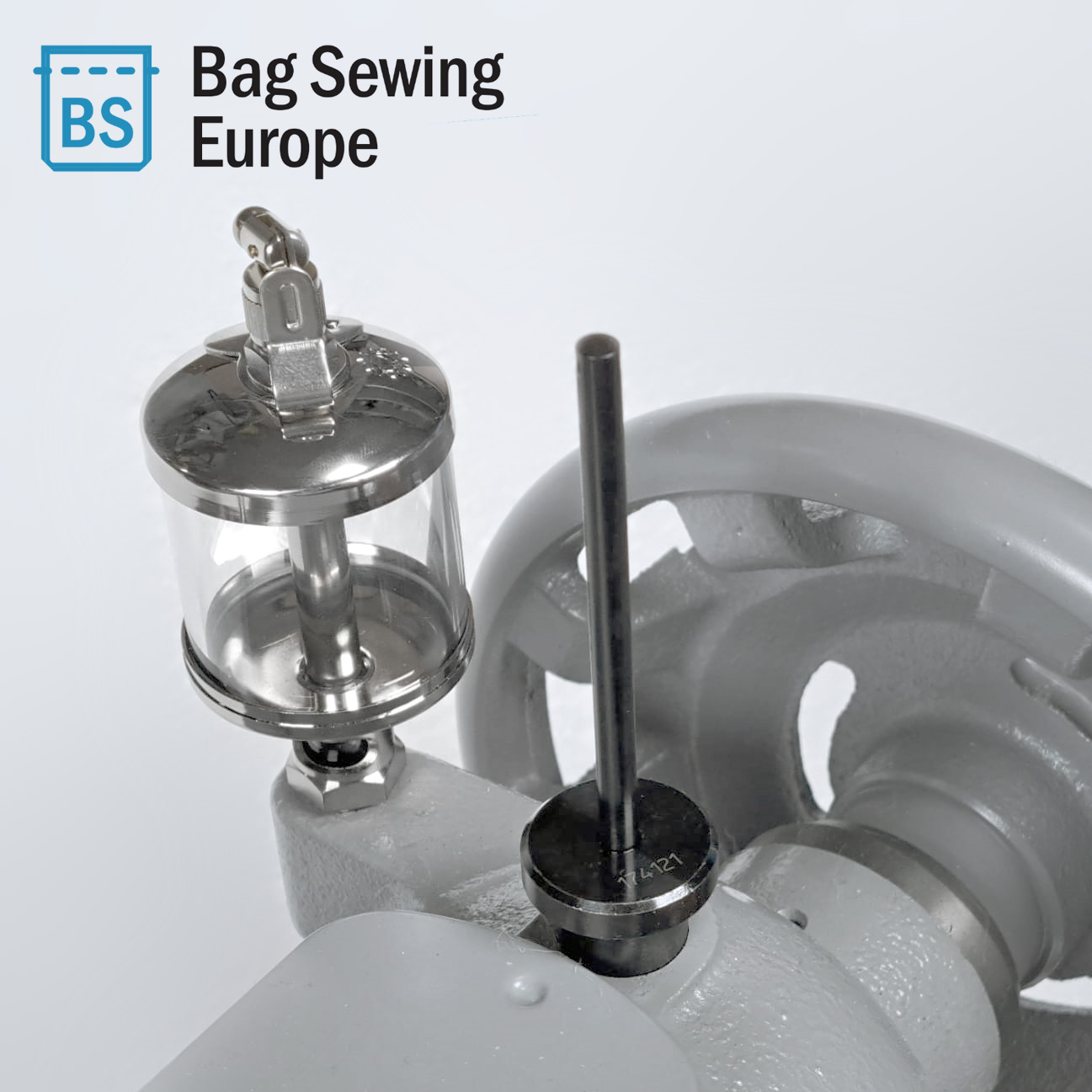

- Oiling: by hand, Oiler
- Oil: Machine oil #10, Tellus #32
- Weight: 50.0kg
- Feature: Sewing head for repair of jute bag, Belts, diversity of uses.
- Related Machines: TD-5, Table setting
