Newlong Industrial DS-11 Swinging needle for closing paper bags, hot melt tape

The Newlong DS-11 the ultimate Bag Closing Machine
Excellent choice when working with Multiwall Paper Bags. This machine is simular to the Doboy D-95 sewing machine but has enhanced features such as a lubricated Oil Bath. A Special designed single needle double thread chain stitch bag closing machine head with continuous motion feeding system for heat sealing. Equipped with pneumatic guillotine type crepe tape cutter.

    • Equivelant to Doboy D95
    • Unique Swinging Needle system
    • Lubricated Oil Bath
    • Easy replacing of the main belt
    • Continues motion feeding system
    • Pneumatic Guilletine Crepe tape cutter
    • Timing belt is easy to change! no need to remove the main shaft (like the DS-7c)

Technical Specifications

  • Max. Speed: 2,000rpm
  • Seam: Double thread chain stitch
  • Stitch Width: 10.2mm fixed (self-feeding)
  • Bag Material: Paper or PP
  • Thickness Paper bag: 3P with a tuck
  • Cutter: Automatic crepe tape cutter
  • Needle: Organ  DN-H29 #26
  • Oiling: Oil bath and Oil pump
  • Oil: Tellus #32 or equivelant Food grade
  • Weight: 31.0kg
  • Transport:  Upper & Lower power Feed Driving Rollers

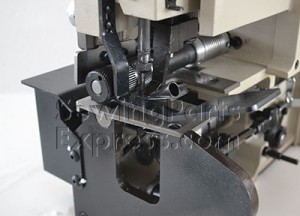

newlong-ds11-feeding-mechanism Closeup of the Feed rollers of the Newlong Industrial DS-11. Both feed rollers are actively driven. There is minimum damage to the bag.

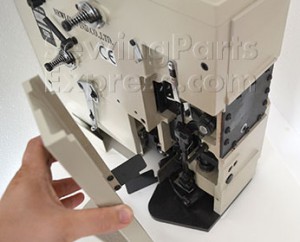

easy_access_threading_newlong_ds11_doboy_d95 Easy access cover to thread the Looper thread of the Newlong Industrial DS11 Sewing Machine and access the parts and inspection of the sewing machine.

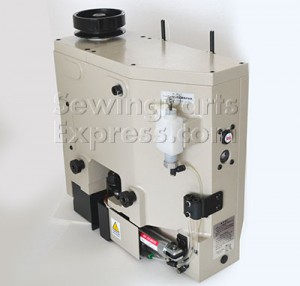

 newlong_industrial_ds-11_connectionpoints The Newlong ds-11 can be integrated in a variaty of systems. The 3 connection points on the side of the machine can act as sliders / rollers (compatible with Doboy System) or can be fixed with the screws and a special bracket to a A1-PB Pedestal. An integrated oil bath makes the machine run smooth at high speed. The extra oil pump provides oiling to the parts that are not oiled via the automatic lubrication. The pneumatic Crepe tape cutter of the newlong ds11 cuts once per bag through crepe tape and the thread at the same time.
   Watch the video of the Newlong DS-11 in action. In this example it is combined with a sealer system.

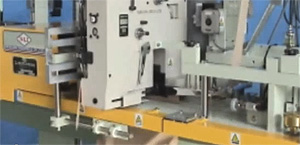

  Newlong Industrial DS-11 integrated in a system that adds hotmelt tape on a bag. it is the ultimate way to prefent sifting.

Technical Specifications

Model DS-11
Max. Speed * 2,000rpm
Seam Double thread chain stitch (Type 401)
Stitch Width 10.2mm
Bag Material Paper ・ PP
Thickness Paper bag 3P with a tuck
Cutter Automatic crepe tape cutter
Needle DN-H29 #26
Oiling Oil bath ・ Oil pump
Oil Tellus #32
weight 31.0kg
Feature High-speed type of DS-7C Continuation sending Upper & Lower Feed power Driving Rollers
Related Machines KS-1・KS-2 (Kraft Sealer), A1-PB (with special bracket)

depending on the sewing material and operation

Description
Automatic swing needle machine specially designed to operate as an integrated part of sealing system. Features continuous motion feeding; the timed needle moves in epicyclical rotations as the bag passes through the sewing head.

Power driven feed rollers ensure accurate feeding of the bag and avoid damage to the sack, which can sometimes be caused by a feed dog. Model Newlong Industrial DS-11 is equipped with pneumatic guillotine type crepe-tape cutter.

Revolution Speed reaches Max.2000rpm(Standard 1800rpm). Oil-Bath and Oil-pump system. Bearing-used Revolution part for endurance. Built-in Timing Belt for Feed Roll for breakage of belt caused dust.



Bag never falls out.
The Newlong Industrial DS-11 is a continuous, rather than intermittent, feed machine; it its most suitable for tape-over closures in an automatic packaging line. Bags are held firmly between chains, throughout travel, until they are finally closed. There is no possibility of a bag coming off the sewing machine during travel.



Excelllent for multi wall paper bags
Excellent choice when working with Multiwall Paper Bags. This machine is simular to the Doboy D-95 sewing machine but has enhanced features such as a lubricated Oil Bath. A Special designed single needle double thread chain stitch bag closing machine head with continuous motion feeding system for heat sealing. Equipped with pneumatic guillotine type crepe tape cutter.

Swinging needle system
Automatic swing needle machine specially designed to operate as an integrated part of sealing system. Features continuous motion feeding; the timed needle moves in epicyclical rotations as the bag passes through the sewing head.

All Power driven feed rollers ensure accurate feeding of the bag and avoid damage to the sack, which can sometimes be caused by a feed dog. Model Newlong Industrial DS-11 is equipped with pneumatic guillotine type crepe-tape cutter.

Revolution Speed reaches Max.2000rpm(Standard 1800 rpm). Oil-Bath and Oil-pump system. Bearing-used Revolution part for endurance. Built-in Timing Belt for Feed Roll for breakage of belt caused dust.
