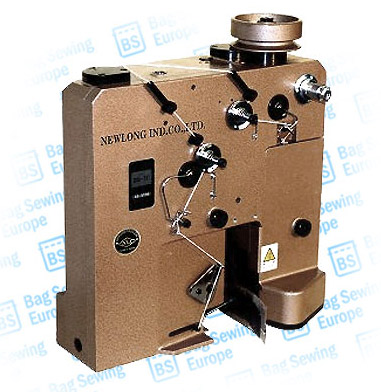

Newlong Industrial DS-7C Bag Closer (simular to Doboy D95)

newlong_np7a_doboy_d95_kit Excellent choice when working with Multiwall Paper Bags. This machine is simular to the Doboy D-95 sewing machine. A Special designed single needle double thread chain stitch bag closing machine head with continuous motion feeding system for heat sealing.

  • Excellent choice when working with Crepe Tape
  • Excellent choice for thinner fragile bags
  • Less damage to the bag because of the Swing needle system

Ask for Free Quote

This machine fits in the same space as the Doboy D95 and can be an alternative to the Doboy D95. It also uses the same swing needle system.
Does not use a Feed dog to transport bags but a feed Roller. Less Damage to the bag when the bags are of thinner or more fragile material.

Equipped with pneumatic guillotine type crepe tape cutter. Automatic swing needle machine specially designed to operate as an integrated part of sealing system. Features continuous motion feeding; the timed needle moves in epicyclical rotations as the bag passes through the sewing head.Power driven feed rollers ensure accurate feeding of the bag and avoid damage to the sack, which can sometimes be caused by a feed dog. Model Newlong Industrial DS-7C is equipped with pneumatic guillotine type crepe-tape cutter.

High Speed version of this Sewing Machine is the Newlong DS-11 (Different stitch Width)  Click Here

Model DS-7A DS-7C
Max. Speed ※ 1,600rpm
Seam Double
thread chain stitch (Type
401)
Stitch Width 7.7mm (FIXED)
Bag Material paper・PP
Thickness Paper bag 3P with a tuck
Cutter Automatic thread cutter Automatic crepe tape cutter
Needle DN-H29 #26
Oiling Oiler
Oil Tellus #32
weight 26.0kg
Feature Continuation sending
Related Machines KS-1・KS-2
(Kraft
Sealer)



※depending
on sewing material and operation.
