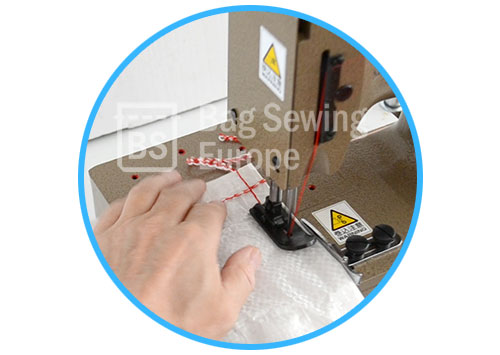

Single Needle Machine, Plain Feed, Flat Bed, Double Thread Chain Stitch for Seaming and Hemming Light to Heavy Materials (Multi-Wall Paper, Polypropylene & Jute) Made in Japan
This is the ideal choice to sew bags and geo textiles by hand or in an automated system. Unique features: has an oil bath, left and right version available. Optional availability like needle cooler, double stitch or single thread setup possible.
Technical Specifications / Caracteristicas Tecnicas
| Model | DN-2HS | DN-2LHS | DN-2W |
| Max. Speed ※ | 3,000rpm | ||
| Seam | Double thread chain stitch (Type 401) | ||
| Stitch Width | 7-12mm | 7-11mm | |
| Bag Material | Paper・Jute・PP | Paper・PP | Paper・PP |
| Thickness | Jute Bag 8mm | Paper bag 6P with a tuck | Paper bag 6P nothing tuck |
| Cutter | NLC | NLC-L | NLC |
| Needle | DR×2 #25 | UY143GS 200 | |
| Oiling | Automatic oil supply | ||
| Oil | Tellus #32 | ||
| weight | 45.0kg | ||
| Feature | Right sewing head | Left sewing head | Double needle |
| Related Machines | TN-2,TN-2D 4N,6N,DSM |
7N,DSM | TN-2W Table setting |
※depending on sewing material and operation
Brand: Newlong Industrial Co., Ltd.
Made in Japan
