Fischbein Empress model 100 and Fischbein Model 101 Bag Closer Sewing Machine

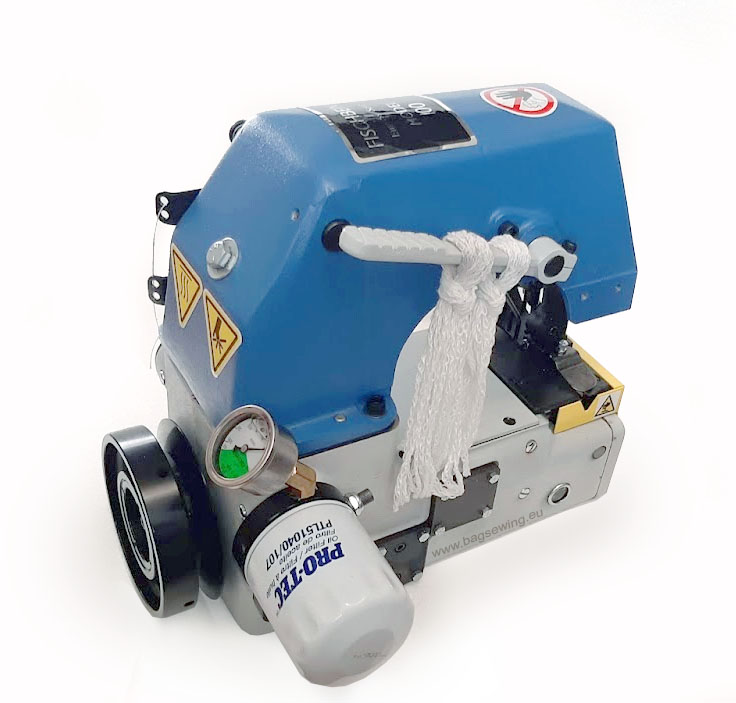

Fischbein Empress model 100

  • Maximum speed: 1900 stitches/min
  • Compact design
  • Variable operating speed
  • Low noise
  • Minimal vibration resulting from precision balanced components
  • Pressurized self-lubricating system
  • Two threads version, stitch type 401
  • Quick thread and tape cutting system

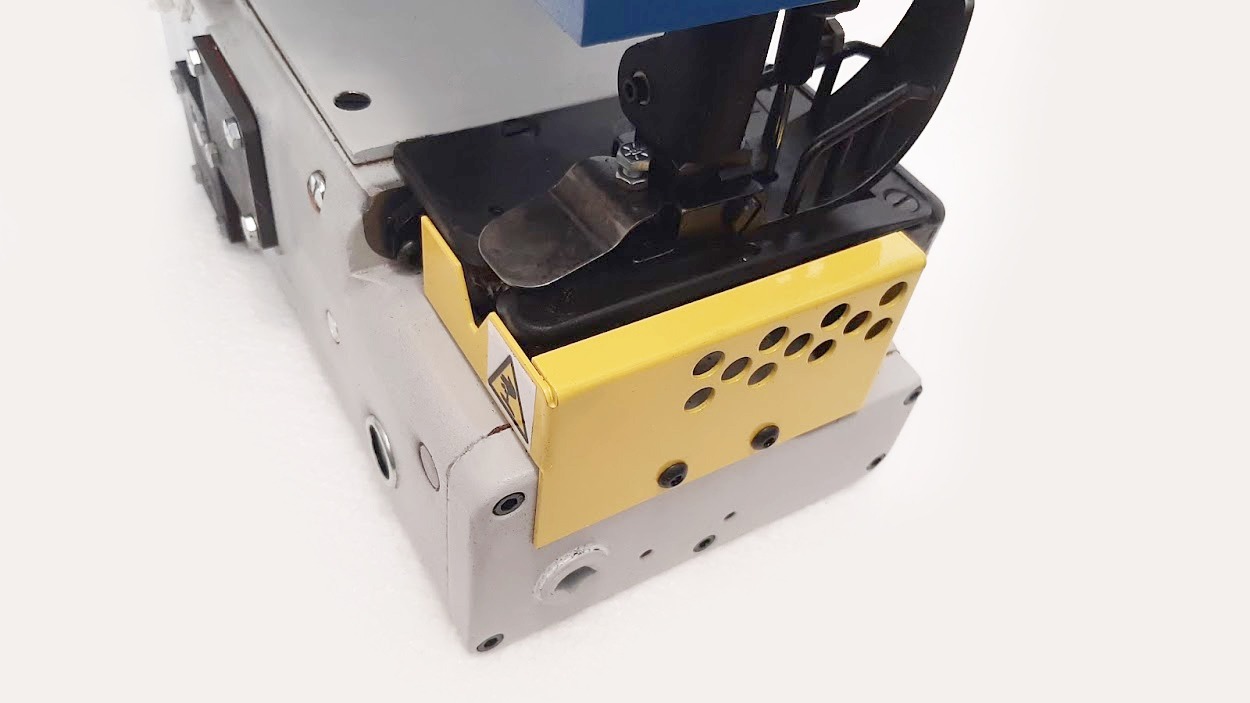

The Fischbein model 100, 200, 101 and 201 can be equipped with 3 different knife systems. Standard the knife is a continues cutting knife (guilletine style knife or also called shear knife). Other options are:

Knife Types for Empress 100

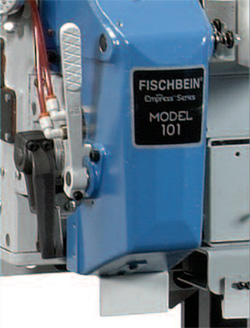

Thread pusher knife extension kit (air operated) Rotating knife (air operated) Clipper knife or Scissor knife (air operated)

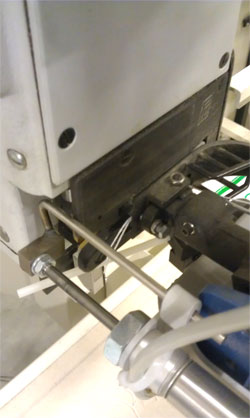

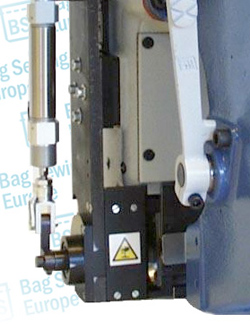

The thread is being pushed into the continues Guilletine style knife (also shear knife) with an air operated pneumatic cilinder At the end of a bag the knife rotate once per cut. The knife is operated by air (pneumatic) The choice if you are working with Crepe Tape. The knife cuts through the tape as wel as the thread at the same time.


50300B-A100 – Sewing head “low vibration” – Model 100 – with shear knife and oil remote, and normal stitch length.
50310B-100 – Sewing head “low vibration” – Model 100 – without knife, and long stitch length.
50310B-A100 – Sewing head “low vibration” – Model 100 – without knife, with oil remote, and long stitch length.
50310B-AB100 – Sewing head “low vibration” – Model 100 – without knife, normal stitch length, equipped for filler cord.
50310B-M100 – Sewing head “low vibration” – Model 100 – without knife, normal stitch length, throat plate 10017 – feed dog 10078.
50330B-100 – Sewing head “low vibration” – Model 100 – with scissor knife, and normal stitch length.
50380B-100 – Sewing head “low vibration” – Model 100 – with rotary knife 26445, and normal stitch length.
50380B-M100 – Sewing head “low vibration” – Model 100 – with rotary knife 26445, and long stitch length.



Threading the looper Thread of a Fischbein Empress 100

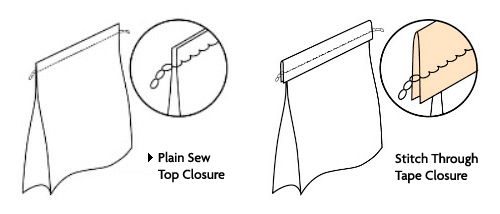

Fischbein Empress 101: Tape Sewing

Specifications:

  • Maximum speed: 1900 stitches/min
  • Air operated tape and/or chain clipper
  • Compact design
  • Variable operating speed
  • Low noise
  • Minimal vibration resulting from precision balanced components
  • Pressurized self-lubricating system
  • Two threads version, stitch type 401
  • Quick thread and tape cutting system

Other Models:

50350B-101-31035 – Sewing head “low vibration” – Model 101 – for tape and/or chain sewing without clipper knife 31035, and normal stitch length.
50350B-PT101 – Sewing head “low vibration” – Model 101 – for tape and/or plain sewing with pull tape, with clipper knife 31035, and normal stitch length.



Fischbein Empress 100: 2 needle 4 thread

  • Pressurized self-lubricating system with external oil filter.
  • Sealed in oil against dust, dirt and foreign particles.
  • Gear oil pump.
  • Variable pulley for an easy synchronisation with the conveyor speed.
  • Twin needle version (4 threads): double stitch type 401
  • Produces 2 sewn lines on the bag. The stitches between the two lines are offset to further minimize/eliminate sifting of product through the sewn closure.
  • Chain cutting: shear type knife.
  • Maximum speed: 1900 rpm

With a power infeeder you can automate systems or just let your handfeed run more smoothly or add crepe tape to your bags. Here are some infeeders from Fischbein that can be used in combination with all sewing machines.

Fischbein D4280 power infeeder Fischbein A2796 power infeeder
D4380 – Standard short length [13.50 inches] plain sew infeed – guides the bag top into the sewing head. Depending on plant conditions, the D4380 infeed’s operational range is 35 to 60 linear feet per minute. Blunt nose long length [33.00 inches] plan sew infeed – used with automated bagging lines where the bag is transferred from a hanger/scale is directly to the plain sewing system. Depending on plant conditions, the A2796 infeed’s operational range is 35 to 60 linear feet per minute.
Fischbein 29520NT power infeeder Fischbein A2940 power infeeder
Direct drive standard medium length [22.75 inches] plain sew infeed – used exclusively with VFD sewing applications. The infeed automatically guides the bag top into the sewing system and depending on plant conditions, the 29520NT infeed’s operational range is 35 to 70 linear feet per minute. Fold-over medium length [22.75 inches] plain sew infeed – automatically folds the bag top over – towards the rear, resulting in a stronger bag closure – the perfect solution for closing woven and laminated woven polypropylene bags. Depending on plant conditions, the A2940 fold over infeed’s operational range is 35 to 50 linear feet per minute.
Fischbein A2790GR power infeeder Fischbein A2790GF power infeeder
Tagger medium length [22.75 inches] plain sew infeed – the infeed automatically guides the bag top and bag tag into the sewing head. The A2700GR is used for tag placement on the rear face of the bag. Depending on plant conditions, the A2790GR infeed’s operational range is 35 to 60 linear feet per minute. Tagger medium length [22.75 inches] plain sew infeed – the infeed automatically guides the bag top and bag tag into the sewing head. The A2700GF is used for tag placement on the front face of the bag. Depending on plant conditions, the A2790GF infeed’s operational range is 35 to 60 linear feet per minute.
Fischbein 29520NTGF power infeeder Fischbein 29520NTGR power infeeder
Tagger medium length [22.75 inches] plain sew infeed – used exclusively with VFD applications. The infeed automatically guides the bag top and bag tag into the sewing head. The 29520NTGF is used for tag placement on the front face of the bag. Depending on plant conditions, the infeed’s operational range is 35 to 70 linear feet per minute. Tagger medium length [22.75 inches] plain sew infeed – used exclusively with VFD applications. The infeed automatically guides the bag top and bag tag into the sewing head. The 29520NTGR is used for tag placement on the rear face of the bag. Depending on plant conditions, the infeed’s operational range is 35 to 70 linear feet per minute.

For a free quote or more information please click here to contact us
